Lossless Tonal Adjustments in JPEG's DCT Domain: Exposure Compensation and Multi-Band Contrast

Most JPEG workflows treat exposure (brightness) and contrast as inherently "lossy": decode pixels, apply curves, then re-encode. That approach works, but it always introduces an additional step of quantization error.

In this github fork of the IJG JPEG-10 code, I added two options to jpegtran that operate directly on quantized DCT coefficients:

• -exposure-comp EV
• -contrast DC LOW MID HIGH

Both are applied during transcoding, so they combine naturally with existing jpegtran operations such as rotation, flipping, cropping, marker copying, and progressive conversion.

https://github.com/jurgen178/jpeg10
Download Windows x64 binary: jpegtran.zip

Quick Usage

jpegtran [standard options] [-exposure-comp EV] [-contrast DC LOW MID HIGH] input.jpg output.jpg

Examples:

# Brighten by 1 stop
jpegtran -copy all -exposure-comp 1 input.jpg output.jpg

# Darken by 0.5 stops
jpegtran -copy all -exposure-comp -0.5 input.jpg output.jpg

# Contrast (uniform: DC=LOW=MID=HIGH)
jpegtran -copy all -contrast -1   -1   -1   -1   input.jpg out-contrast-u-1.jpg
jpegtran -copy all -contrast -0.5 -0.5 -0.5 -0.5 input.jpg out-contrast-u-0.5.jpg
jpegtran -copy all -contrast  0.5  0.5  0.5  0.5 input.jpg out-contrast-u+0.5.jpg
jpegtran -copy all -contrast  1    1    1    1   input.jpg out-contrast-u+1.jpg

# Contrast (band-specific examples)
jpegtran -copy all -contrast 0 0 0.6 0   input.jpg out-contrast-mid+0.6.jpg
jpegtran -copy all -contrast 0 0 0 0.4   input.jpg out-contrast-high+0.4.jpg
jpegtran -copy all -contrast 0 0.4 0 0   input.jpg out-contrast-low+0.4.jpg

# Combine: rotate 90°, brighten 0.5 EV, and add uniform contrast +0.5
jpegtran -copy all -rot 90 -exposure-comp 0.5 -contrast 0.5 0.5 0.5 0.5 input.jpg output.jpg

Both switches accept fractional values. Practical ranges:

Integrated into cPicture with live preview:

Background: DCT Coefficient Basics

A JPEG image is encoded as a grid of DCT blocks (with 8×8 Elements in size). Each block has one DC coefficient and 63 AC coefficients. But each MCU might have more than one block depending on the color subsampling.

• DC[0] represents the (level-shifted) average sample value of the block. The relationship to pixel mean is:

  $$\mu = \frac{DC_\text{unquant}}{N} + \text{center}$$

  where $N$ is the DCT block size of 8 and $\text{center} = 2^{\text{precision}-1}$ (e.g. 128 for 8‑bit).

• AC[1..N²−1] represent spatial frequency components (texture, edges, contrast).

Both DC and AC are stored quantized: the actual stored integer is $\text{round}(\text{value} / Q_k)$, where $Q_k$ is the quantization step for coefficient $k$.

-exposure-comp EV — Exposure Compensation

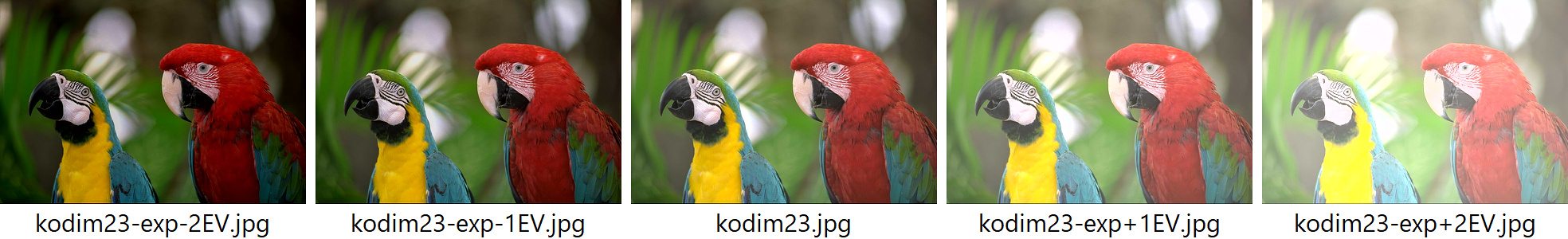

Exposure compensation from -2EV to +2EV:

Concept

A photographic EV step corresponds to doubling (or halving) the amount of light. Applied in linear light:

$$\text{gain} = 2^{EV}$$

Because JPEG samples are gamma-coded (sRGB), pixel values cannot be multiplied directly. Instead:

1. Estimate a representative level from the DC blocks.
2. Compute the equivalent additive pixel-domain offset by applying the gain in linear light at that reference level.
3. Translate the offset into a quantized DC delta.
4. Add the delta to every DC coefficient.

Only DC is modified. AC coefficients are not modified, so local contrast and texture are preserved.

Reference Level — Log-Average

A geometric mean (log-average) of all block mean levels is used as the exposure reference:

$$\bar{L} = \exp\!\left(\frac{1}{B}\sum_{i=1}^{B} \ln(L_i + 1)\right) - 1$$

where $L_i$ is the intensity mean of block $i$ (clamped to $[0, \text{MAX}]$) and $B$ is the total number of blocks.

sRGB Linearisation

The gain is applied in linear light:

$$u_\text{ref} = \frac{\bar{L}}{\text{MAX}}$$

$$u_\text{ref,lin} = f_\text{lin}(u_\text{ref})$$

$$u_\text{new,lin} = \min(u_\text{ref,lin} \cdot \text{gain},\; 1.0)$$

$$u_\text{new} = f_\text{sRGB}(u_\text{new,lin})$$

The sRGB transfer functions used:

$$f_\text{lin}(u) = \begin{cases} u / 12.92 & u \le 0.04045 \\ \left(\dfrac{u + 0.055}{1.055}\right)^{2.4} & u > 0.04045 \end{cases}$$

$$f_\text{sRGB}(u) = \begin{cases} 12.92\,u & u \le 0.0031308 \\ 1.055\,u^{1/2.4} - 0.055 & u > 0.0031308 \end{cases}$$

Pixel-Domain Offset → Quantized DC Delta

$$\Delta_\text{samples} = (u_\text{new} - u_\text{ref}) \cdot \text{MAX}$$

Clamped to available headroom/shadow room to limit clipping, then converted to a quantized DC delta:

$$\Delta_{DC} = \text{round}\!\left(\frac{\Delta_\text{samples} \cdot N}{Q_0}\right)$$

where $N$ is the DCT block size and $Q_0$ is the DC quantization step.

Component Policy

For CMYK and YCCK the delta is computed in an inverted intensity domain ($I = \text{MAX} - \text{sample}$) so that +EV brightens and −EV darkens.

-contrast DC LOW MID HIGH — Contrast Adjustment

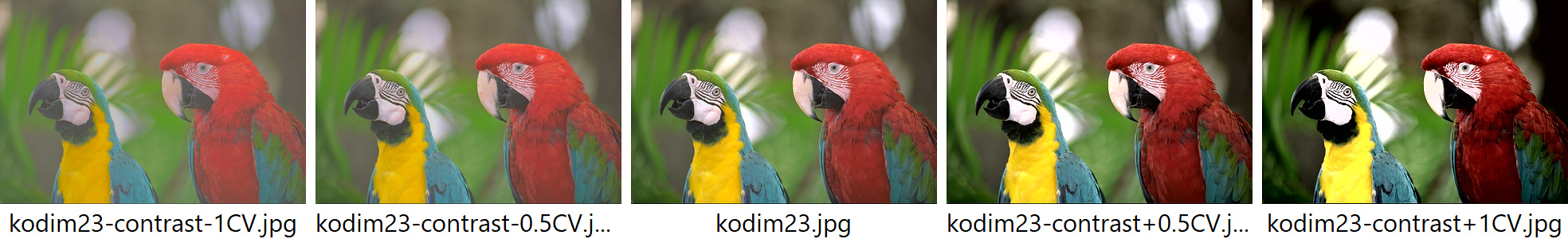

Contrast from -1CV to +1CV:

Concept

This option provides four separate controls (all in stops):

• DC controls the DC coefficient (block mean)
• LOW, MID, HIGH control the AC coefficients in frequency order

All controls are interpreted as log2 gains (stops). For a value $x$, the gain is:

$$g(x) = 2^{x}$$

So +1 doubles, -1 halves.

DC

DC is scaled by:

$$g_\mathrm{DC} = 2^{DC}$$

and applied as:

$$DC' = \mathrm{clamp}(\mathrm{round}(g_\mathrm{DC} \cdot DC))$$

AC (low/mid/high weighting)

AC coefficients are processed in zigzag order (the JPEG natural order). Let $z$ be the AC position with $z = 1 \ldots A$, where $A$ is the number of AC coefficients.

Define a normalized position:

$$t = \begin{cases} \dfrac{z-1}{A-1} & A > 1 \\ 0 & A = 1 \end{cases}$$

Triangular weights:

• low weight fades out from low frequencies

$$w_\mathrm{low} = \max(0, 1 - 2t)$$

• mid weight peaks in the middle

$$w_\mathrm{mid} = 1 - |2t - 1|$$

• high weight fades in toward high frequencies

$$w_\mathrm{high} = \max(0, 2t - 1)$$

Per-coefficient exponent and gain:

$$v(z) = LOW\cdot w_\mathrm{low} + MID\cdot w_\mathrm{mid} + HIGH\cdot w_\mathrm{high}$$

$$g(z) = 2^{v(z)}$$

Applied to each AC coefficient:

$$AC'[z] = \mathrm{clamp}(\mathrm{round}(g(z)\cdot AC[z]))$$

If DC = LOW = MID = HIGH = X, then all coefficients are scaled by the same gain $2^X$ (uniform contrast adjustment).

Component Policy

Same as -exposure-comp:

• YCbCr/BG_YCC/YCCK: luma only
• RGB subtract-green: base/green only
• otherwise: all components

Ordering and Composition

Both -exposure-comp and -contrast are applied as a post step after any geometric transform (-rot, -flip, -crop, …). The tonal operations work on the final output coefficient arrays, so the order of switches on the command line does not matter.

Implementation notes

• Core implementation:
  • transupp.c: do_exposure_comp() and do_contrast()
  • transupp.h: adds new fields to jpeg_transform_info
• CLI parsing:
  • jpegtran.c
• Feature flags and parameters are stored in jpeg_transform_info in transupp.h

Summary

• -exposure-comp EV shifts brightness by changing only DC coefficients, with EV evaluated in linear light (sRGB transfer) at a log-average reference.
• -contrast DC LOW MID HIGH scales DC and AC coefficients, with AC gains varying smoothly over frequency order using low/mid/high controls.
• Both run in the DCT domain and integrate naturally into the lossless-transformation workflow of jpegtran.
